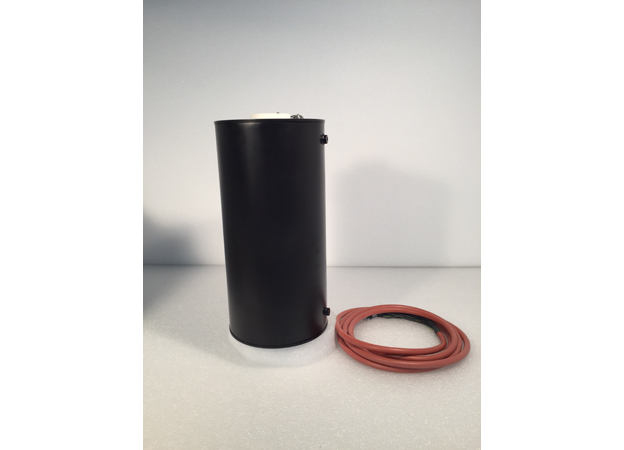

(without electrical control unit)

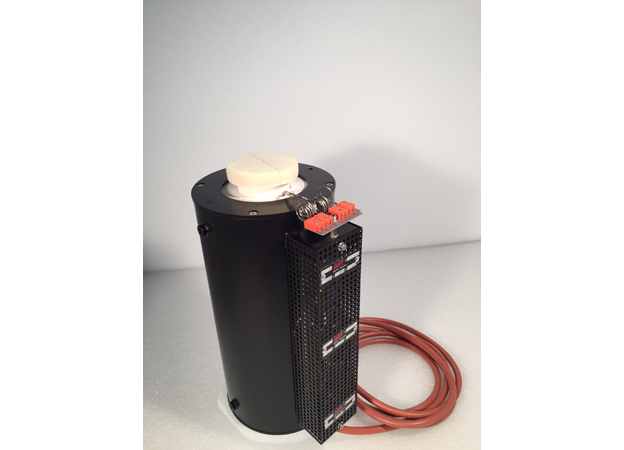

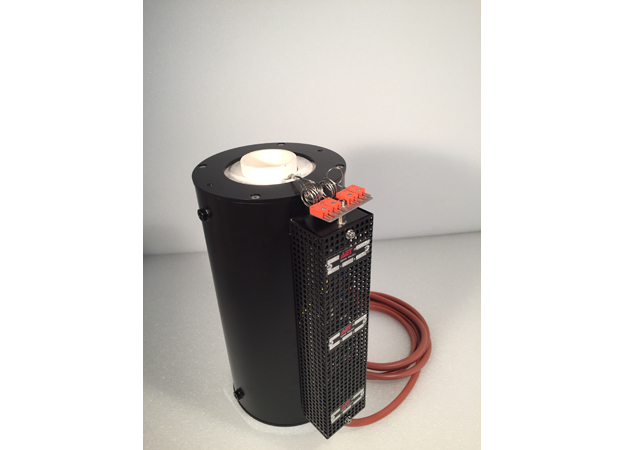

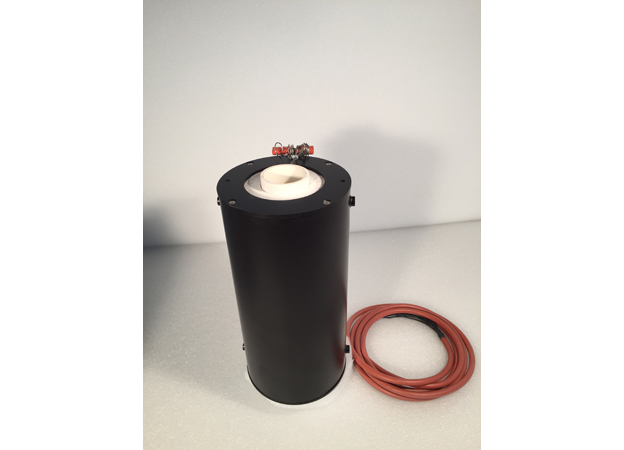

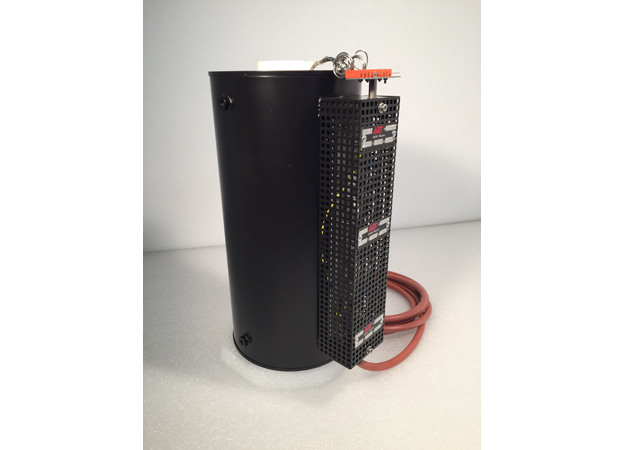

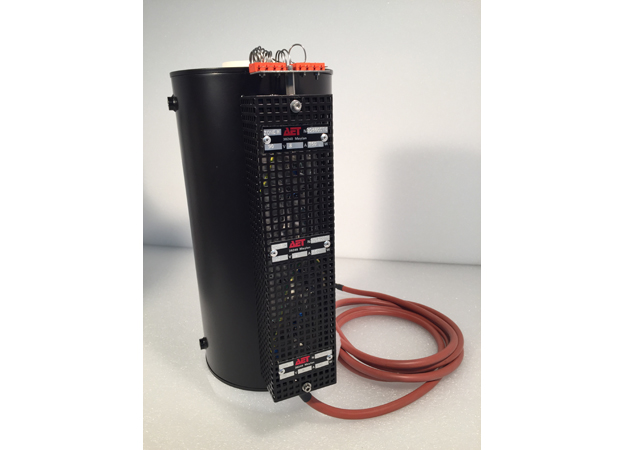

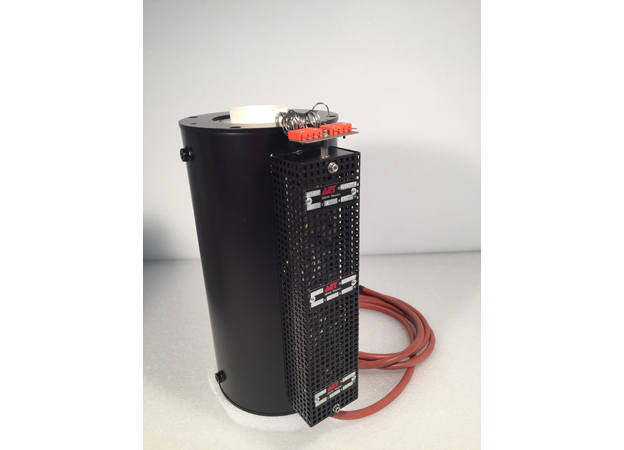

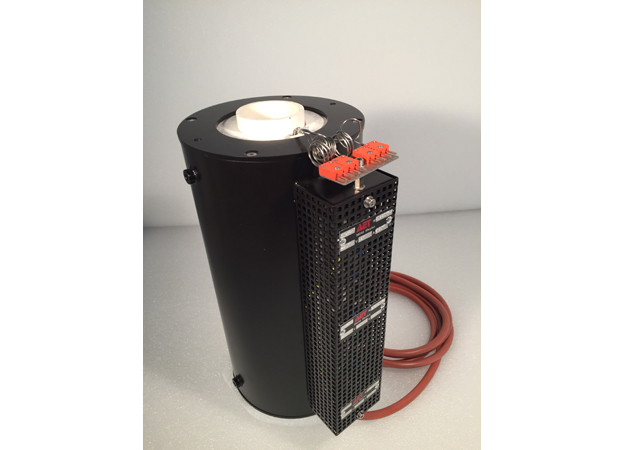

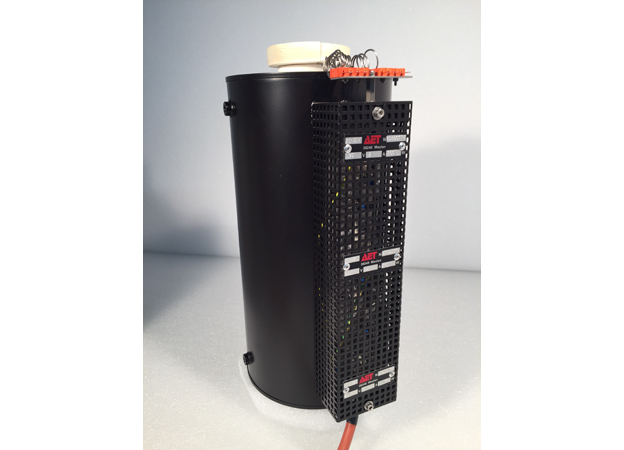

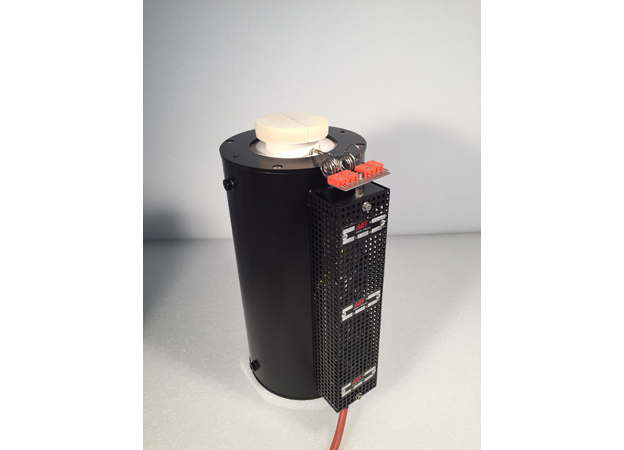

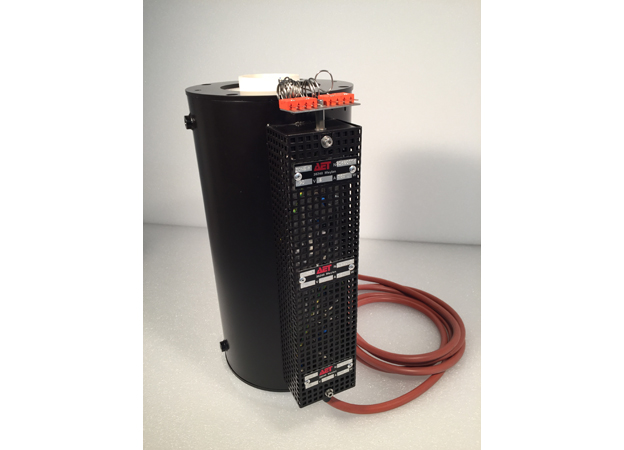

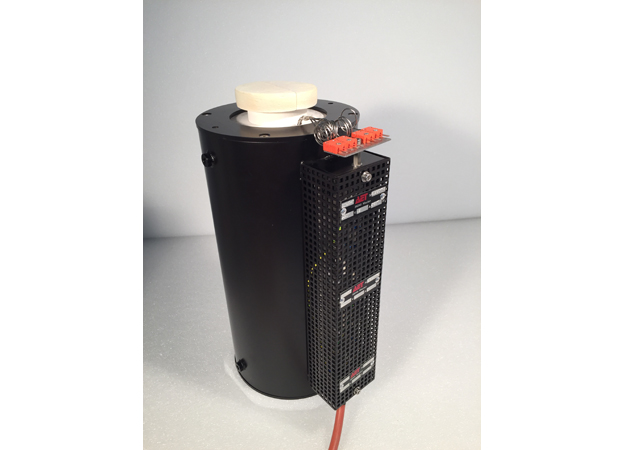

Discover our 1100°C Air Monozone/multizone Tube furnace (Adamel type). Our engineering expertise in heating, atmosphere management, vacuum management, mechanical transfers, automation and regulation enables us to provide you with a solution that is perfectly adapted to your needs.
We adapt to your expectations by providing you with numerous solutions for research laboratories or industrial production.
All our equipment is CE compliant and is manufactured with materials that comply with current legislation.
| Caractéristiques (Fr) | Specifications (Eng) | |||
|---|---|---|---|---|
|
Atmosphère de travail Process |
Air |
Air |
||
|
Température Maximale Maximum processing temperature |
Jusqu’à 1600°C |
Up to 1600°C |
||
|
Application Application |
Flexion, Traction, compression et fluage |
Flexion, traction, compression & creep |
||
|
Zone de chauffe Heating zone
*sous réserve compatibilité matériaux, gaz, température *subject to material, gas and temperature compatibility |
Monozone ou Multizone |
|
||
|
Accès Access |
|
|
||
|
Dimensionnement Sizing |
|
|
| Caractéristiques (Fr) | Specifications (Eng) | |
|---|---|---|
|
Multiprogramme + enregistreur |
Multiprogram + recorder |
|
|
Supervision |
HM sur pc standard |
HCI on standard PC |
|
Autres options |
Gaz sec ou humide : régulation point de rosée |
Dry or wet gas: dew point control |
|
Passage pour extensomètre par contact |
Passage for contact extensometer |
|
|
Support mécanique autonome avec possibilité de régler la hauteur du four par rapport à la machine d’essai mécanique |
Stand-alone mechanical support with the possibility to adjust the height of the oven in relation to the mechanical testing machine |
|
|
Bouchons thermiques haut et bas |
Top and bottom thermal plugs |
|
|

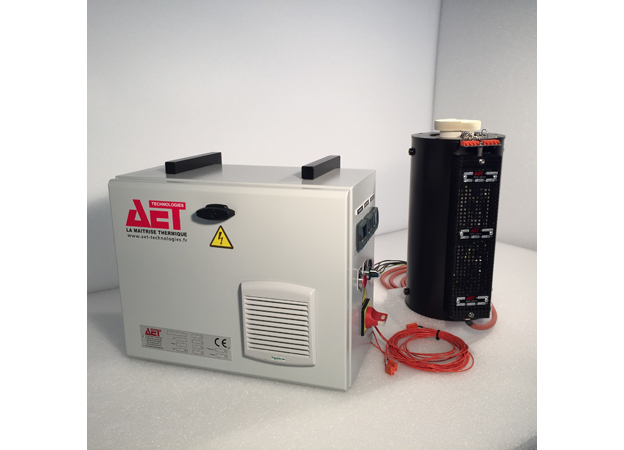

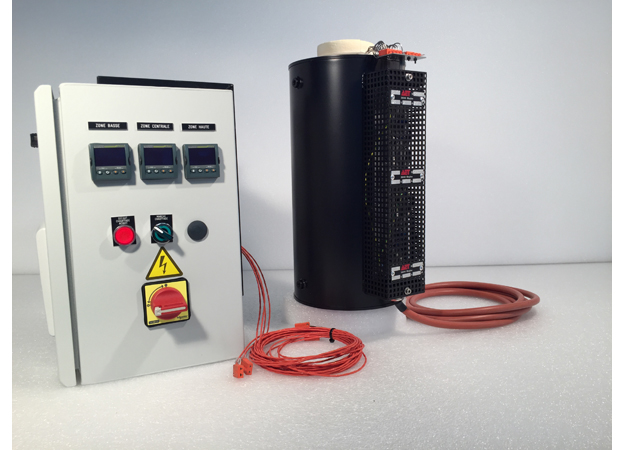

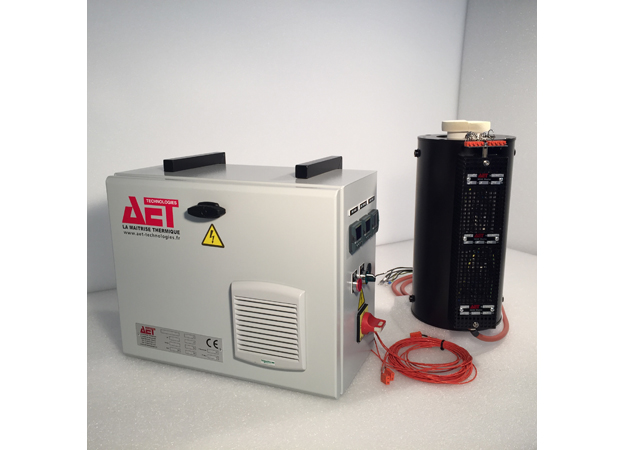

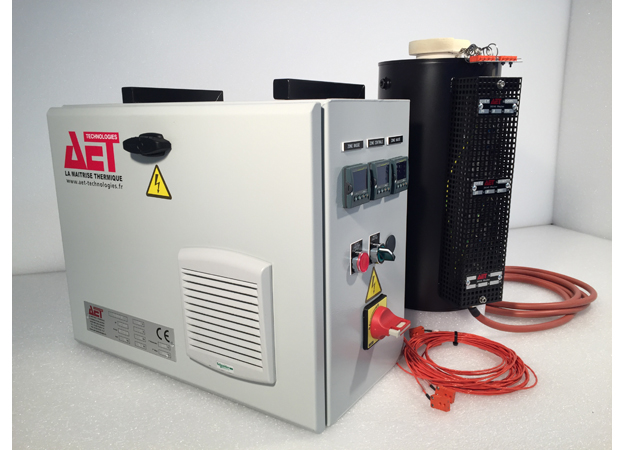

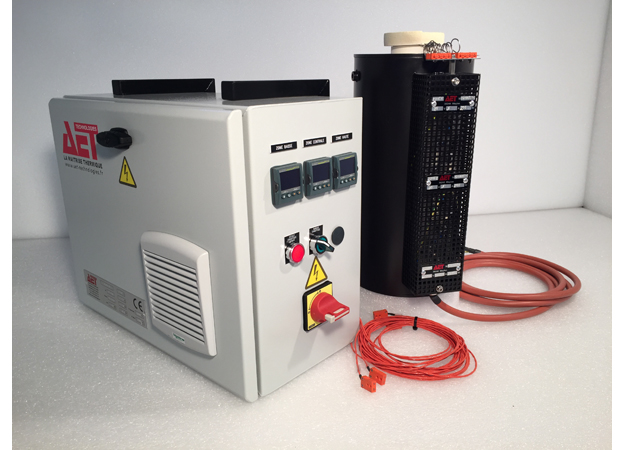

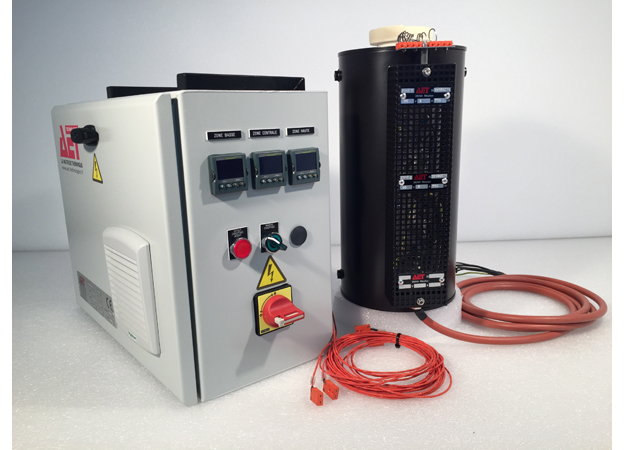

Coffret électrique de régulation |
Electrical control box |
| Température Maximale
Maximum Temperature |
1100°C | 1100°C |
| Zone de chauffe indépendantes
Heating zone |
3 zones | 3 zones |
| Application
Application |
Fluage | Creep |
| Accès
Access |
Non-ouvrant | Non-open |
| Volume intérieur utile (D x H mm)
Sizing |
65-410 mm / 85 x 410 mm | 65-410 mm / 85 x 410 mm |
| Ø Extérieur
External Ø |
250 mm | 250 mm |
| Option | Avec ou sans coffret de régulation | With or without control box |
