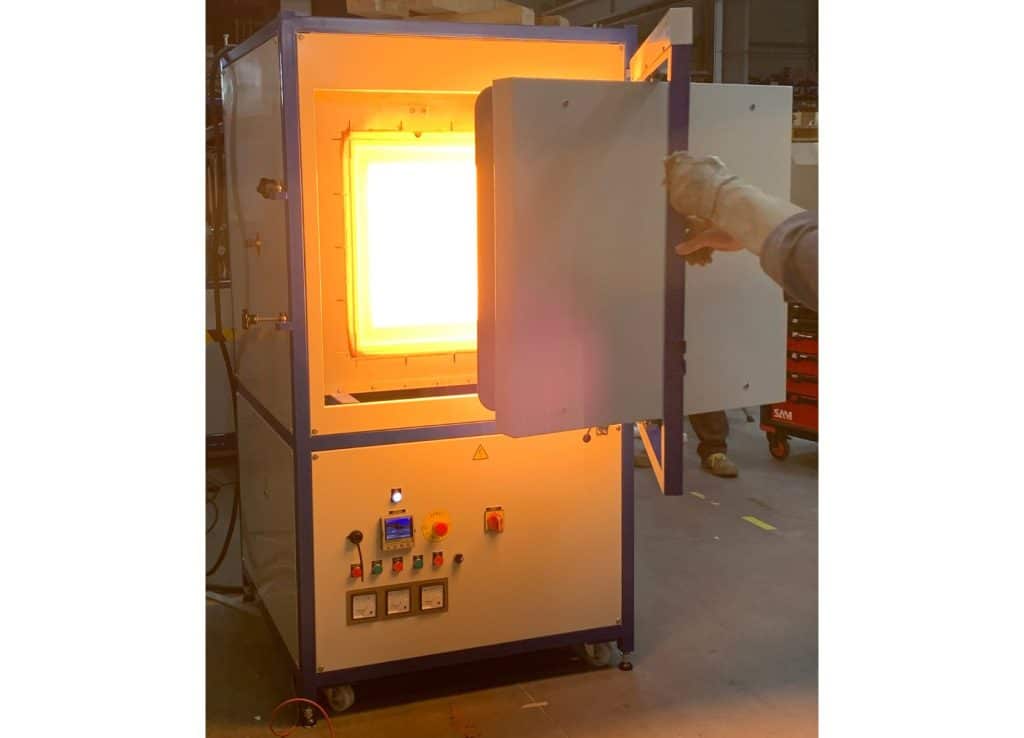

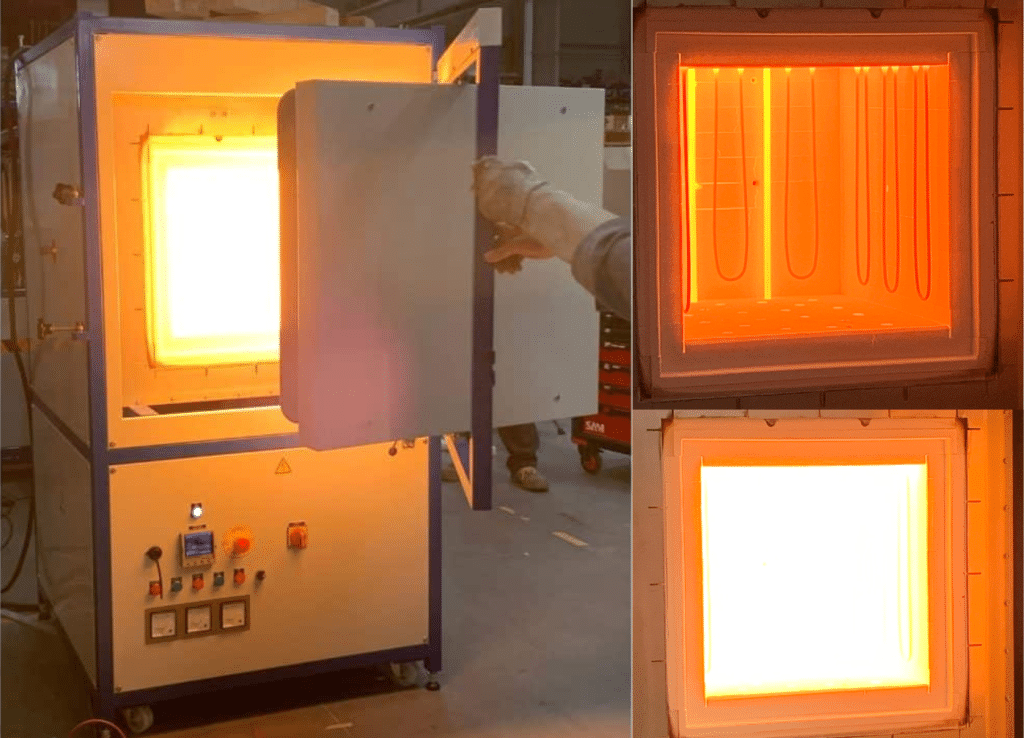

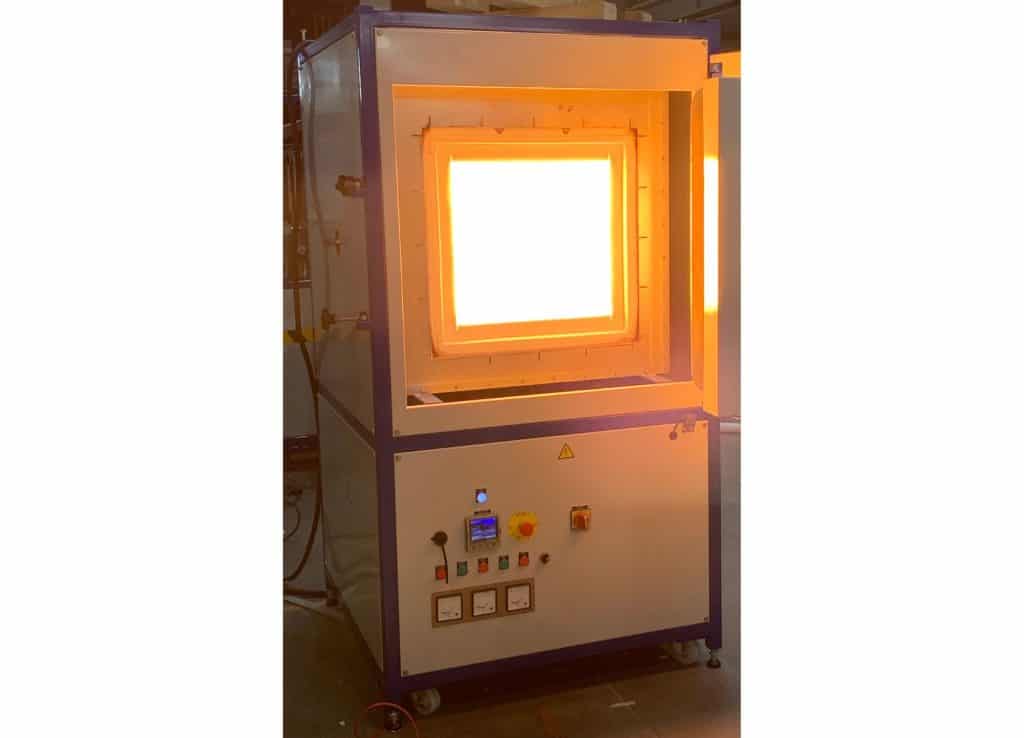

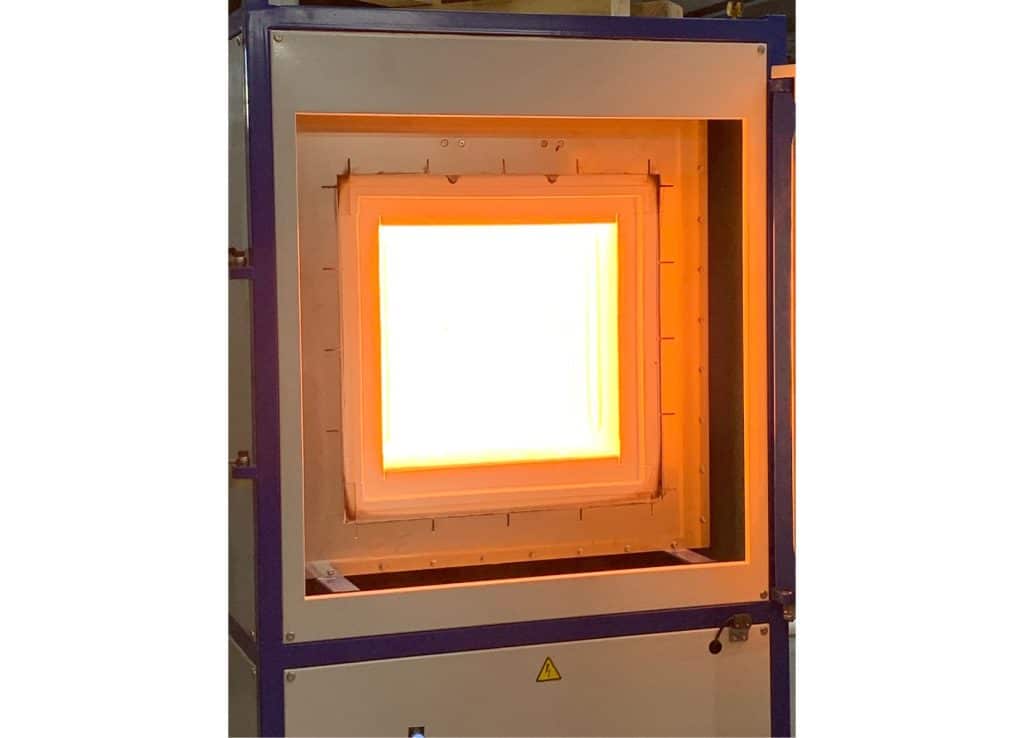

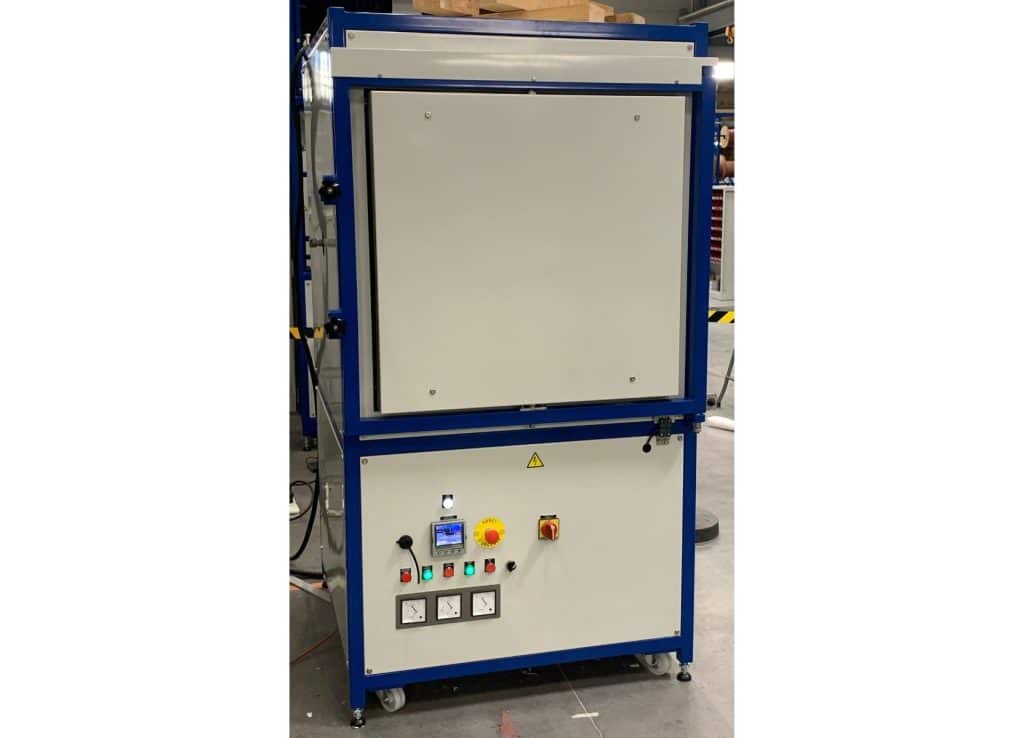

Four 1800°C à chambre sous atmosphère contrôlée ouverture à chaud

1800°C air chamber furnace hot opening

Discover our 1800°C air chamber furnace (hot opening option). Our engineering know-how concerning heating, atmosphere management, vacuum management, mechanical transfers, automation and regulation enables us to provide you with a response perfectly adapted to your needs.
We can adapt to your needs by presenting a wide range of models for research laboratories or industrial production.

All our equipment is CE compliant and is manufactured with materials that comply with current legislation.





Caractéristiques
Options
Caractéristiques (Fr) Specifications (Eng)

Atmosphère de travail

Process

Air

Air

Température Maximale

Maximum processing temperature

Jusqu’à 1800°C

Up to 1800°C

Homogénéité Thermique

Thermal homogeneity

Excellente

Excellent

Isolation Thermique

Thermal Insulation

Non classé

Unclassified

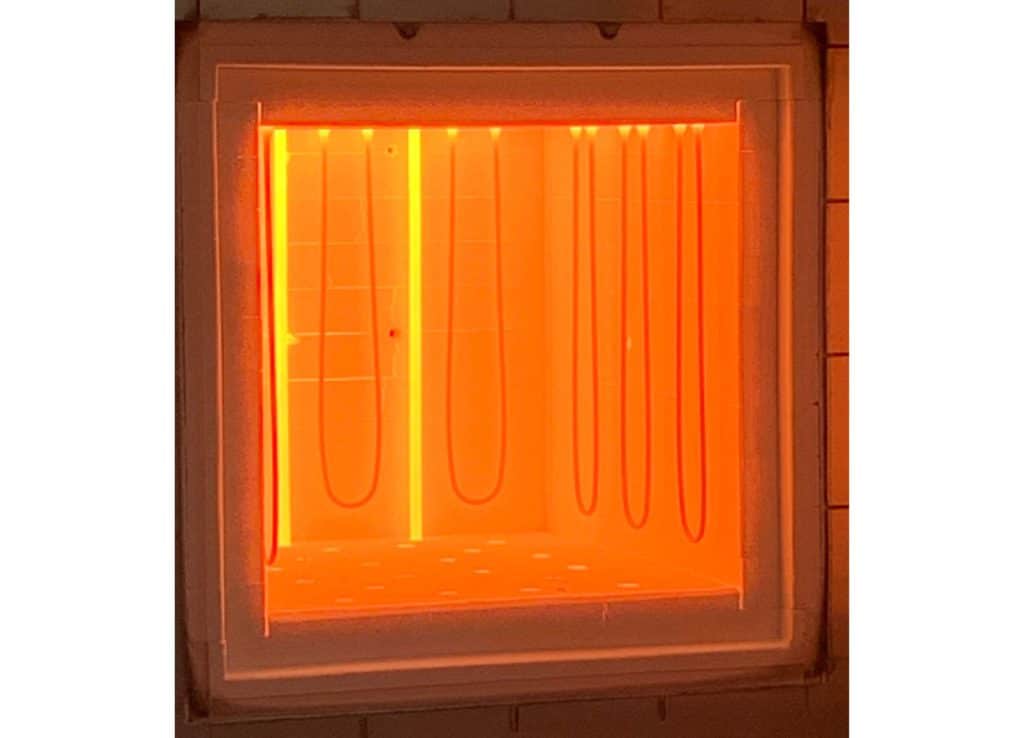

Type d’élément chauffant

Heating element type

CrLaO3 (Chromite de lanthane)

ou MoSi2 (Bisiliciure de Molybdène)

CrLaO3 or MoSi2

Autre dimensionnement

Further sizing

Sur consultation

Upon request

Inclus

Included

Régulateur programmateur classe 0.1

Programmable controller class 0.1

Sécurité

Security

Détection de surchauffe

Overheating detection

Porte

Door

Oui

Yes

Caractéristiques (Fr) Specifications (Eng)

Accès

Access

Porte à dégagement latéral manuelle

ou

Porte guillotine manuelle ou motorisée

Manual side-release door

or

Guillotine door, manual or motorised

Multiprogramme et enregistreur

Multiprogram et recorder

Supervision

Monitoring

IHM sur PC standard

HCI on standard PC

Autres options

Further options

Injection de gaz : air ou neutre

Process gas injection : air or neutral

Passage Thermocouple pour Instrumentation

Thermocouple passage for instrumentation

Cheminée d’exhaust

Exhaust stack

Trappe de voûte : manuelle ou pilotée

Vault hatch: manual or controlled

Sole renforcée (pour charge lourde)

Reinforced sole (for heavy loads)

Vitesse de refroidissement pilotée (avec trappe pilotée)

Controlled cooling speed (with controlled hatch)
